Deep Reinforcement Learning
Beyond DQN
1 - Distributional learning : Categorical DQN
Distributional learning
The trip by train from Leipzig to Chemnitz takes 1 hour if everything goes well.
Once a week on average, the train will get stuck on the way for 30 minutes.
The expected duration of the trip is 1h + 1/5*30 = 1h06.
But in practice it takes either 1h or 1h30, never 1h06.
If driving by car always takes 1h15, it might be worth it if you have an urgent appointment that day.
Distributional learning

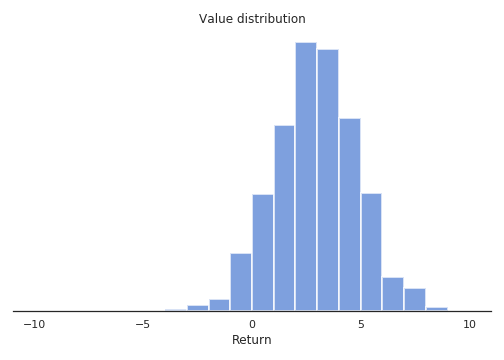

- The idea of distributional RL is to learn the distribution of returns \mathcal{Z}^\pi directly instead of its expectation:
R_t \sim \mathcal{Z}^\pi(s_t, a_t)
- Note that we can always obtain the Q-values back:
Q^\pi(s, a) = \mathbb{E}_\pi [\mathcal{Z}^\pi(s, a)]
Categorical DQN
In categorical DQN (Bellemare et al., 2017), we model the distribution of returns as a discrete probability distribution.
- categorical or multinouilli distribution.
We first need to identify the minimum and maximum returns R_\text{min} and R_\text{max} possible in the problem.
We then split the range [R_\text{min}, R_\text{max}] in n discrete bins centered on the atoms \{z_i\}_{i=1}^n.
The probability that the return obtained the action (s, a) lies in the bin of the atom z_i is noted p_i(s, a).
It can be approximated by a neural network F with parameters \theta, using a softmax output layer:
p_i(s, a; \theta) = \frac{\exp F_i(s, a; \theta)}{\sum_{j=1}^{n} \exp F_j(s, a; \theta)}
Categorical DQN
- The n probabilities \{p_i(s, a; \theta)\}_{i=1}^n completely define the parameterized distribution \mathcal{Z}_\theta(s, a).
\mathcal{Z}_\theta(s, a) = \sum_a p_i(s, a; \theta) \,\delta_{z_i}
where \delta_{z_i} is a Dirac distribution centered on the atom z_i.
- The Q-value of an action can be obtained by:
Q_\theta(s, a) = \mathbb{E} [\mathcal{Z}_\theta(s, a)] = \sum_{i=1}^{n} p_i(s, a; \theta) \, z_i
Categorical DQN

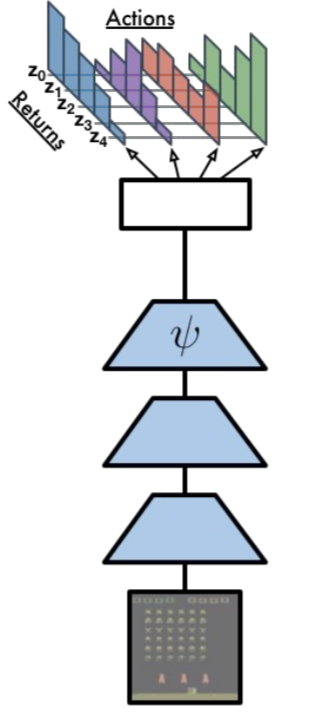

The only thing we need is a neural network \theta returning for each action a in the state s a discrete probability distribution \mathcal{Z}_\theta(s, a) instead of a single Q-value Q_\theta(s, a).
The NN uses a softmax activation function for each action.
Action selection is similar to DQN: we first compute the Q_\theta(s, a) and apply greedy / \epsilon-greedy / softmax over the actions.
Q_\theta(s, a) = \sum_{i=1}^{n} p_i(s, a; \theta) \, z_i
The number n of atoms for each action should be big enough to represent the range of returns.
A number that works well with Atari games is n=51:
- Categorical DQN is often noted C51.
Categorical DQN

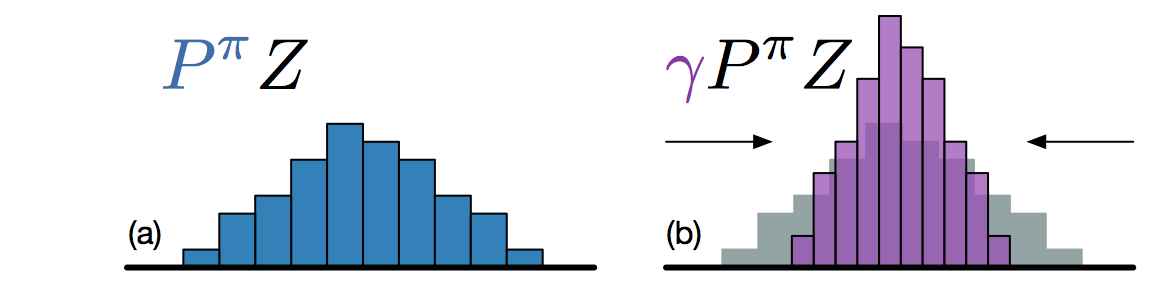

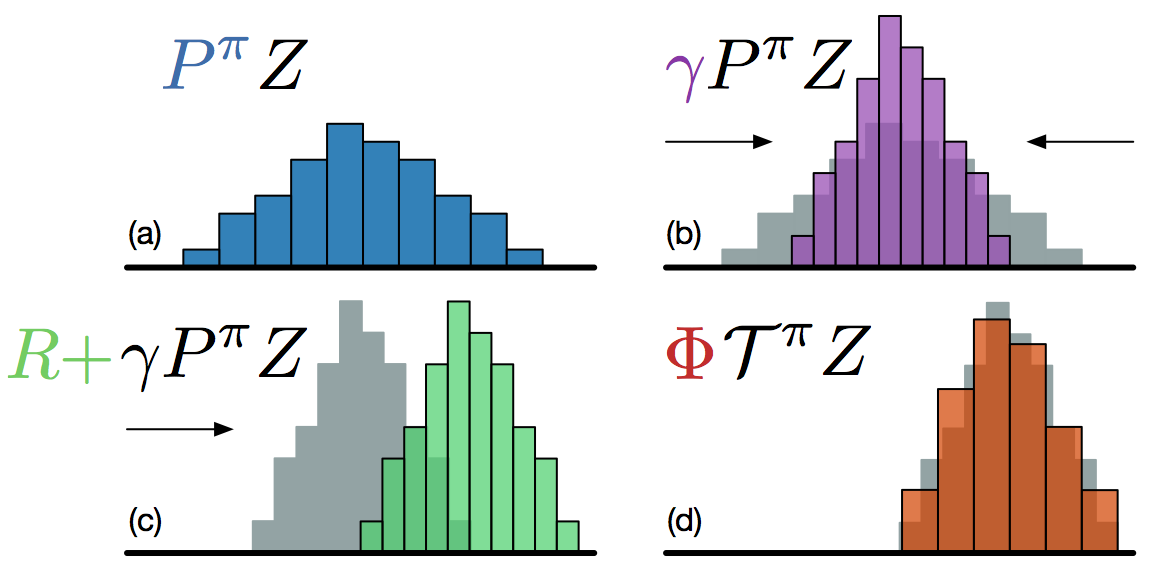

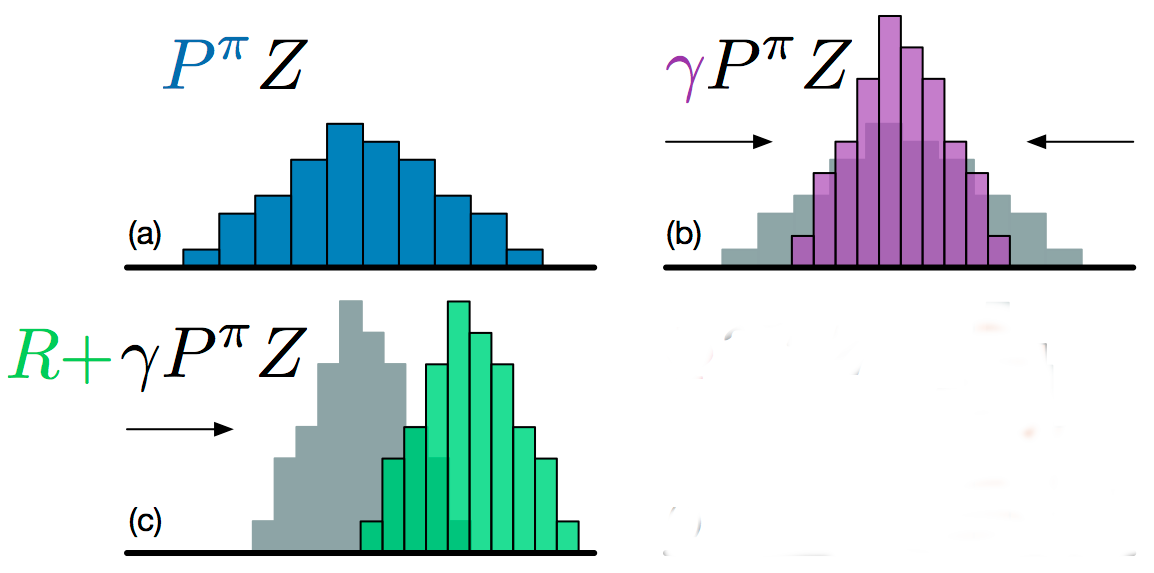

Let’s note P^\pi \, \mathcal{Z} the return distribution of the greedy action in the next state \mathcal{Z}_\theta(s', a').
Multiplying the returns by the discount factor \gamma < 1 shrinks the return distribution (its support gets smaller).
The atoms z_i of \mathcal{Z}_\theta(s', a') now have the position \gamma \, z_i, but the probabilities stay the same.
Source: https://physai.sciencesconf.org/data/pages/distributional_RL_Remi_Munos.pdf
Categorical DQN
- Adding a reward r translates the distribution. The new position of the atoms is:
z'_i = r + \gamma \, z_i
- The corresponding probabilities have not changed.
Source: https://physai.sciencesconf.org/data/pages/distributional_RL_Remi_Munos.pdf
Categorical DQN
But now we have a problem: the atoms z'_i of \mathcal{T} \, \mathcal{Z}_\theta(s, a) do not match with the atoms z_i of \mathcal{Z}_\theta(s, a).
We need to interpolate the target distribution to compare it with the predicted distribution.
Source: https://physai.sciencesconf.org/data/pages/distributional_RL_Remi_Munos.pdf
Categorical DQN

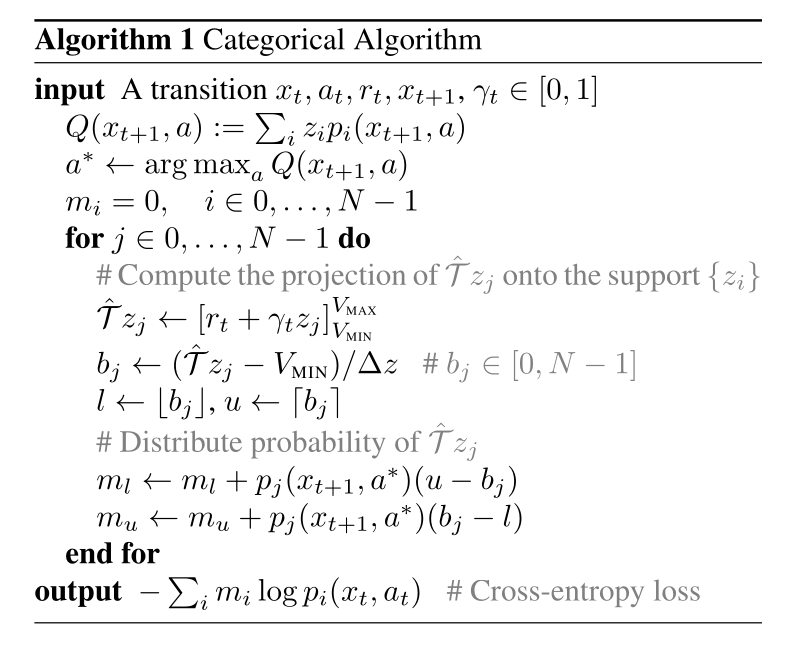

We need to apply a projection \Phi so that the bins of \mathcal{T} \, \mathcal{Z}_\theta(s, a) are the same as the ones of \mathcal{Z}_\theta(s, a).
The formula sounds complicated, but it is basically a linear interpolation:
(\Phi \, \mathcal{T} \, \mathcal{Z}_\theta(s, a))_i = \sum_{j=1}^n \big [1 - \frac{| [\mathcal{T}\, z_j]_{R_\text{min}}^{R_\text{max}} - z_i|}{\Delta z} \big ]_0^1 \, p_j (s', a'; \theta)
Categorical DQN

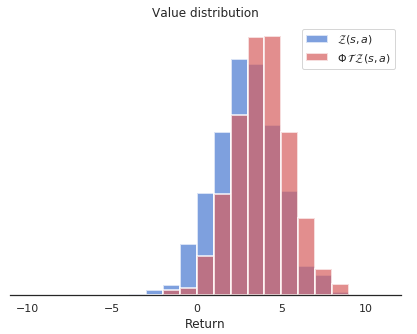

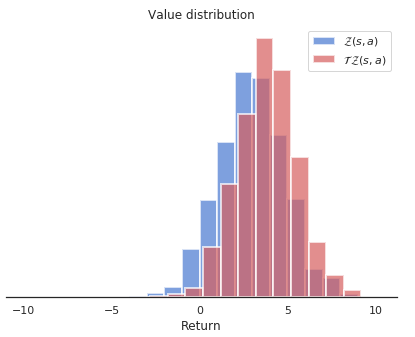

We now have two distributions \mathcal{Z}_\theta(s, a) and \Phi \, \mathcal{T} \, \mathcal{Z}_\theta(s, a) sharing the same support.
We now want to have the prediction \mathcal{Z}_\theta(s, a) close from the target \Phi \, \mathcal{T} \, \mathcal{Z}_\theta(s, a).
These are probability distributions, not numbers, so we cannot use the mse.
We instead minimize the Kullback-Leibler (KL) divergence between the two distributions.
Cross-entropy
- In supervised learning, the targets \mathbf{t} are fixed one-hot encoded vectors.
\mathcal{L}(\theta) = \mathbb{E}_{\mathcal{D}} [ - \mathbf{t} \, \log \mathbf{y} ]
- But it could be any target distribution, as long as \mathbf{t} and \mathbf{y} share the same support.

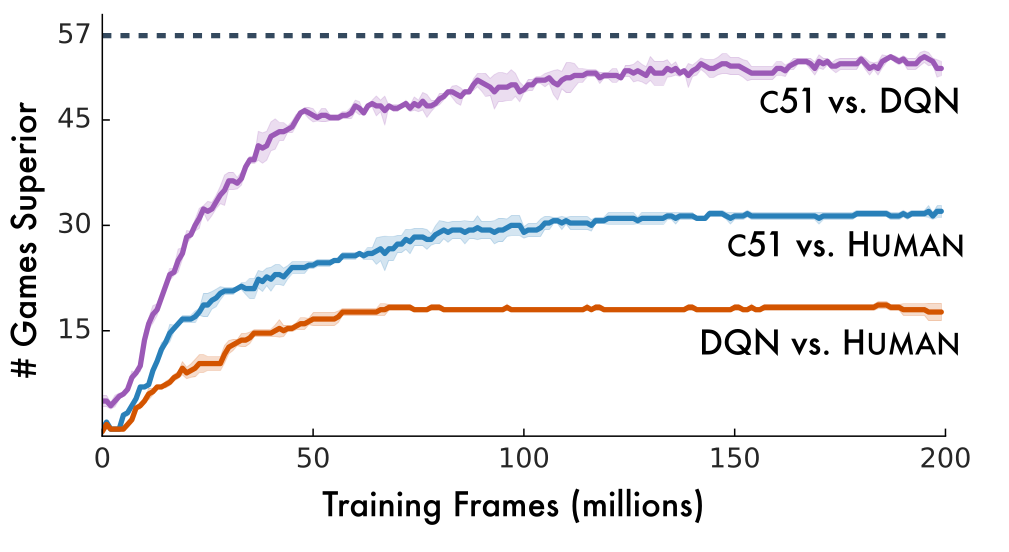

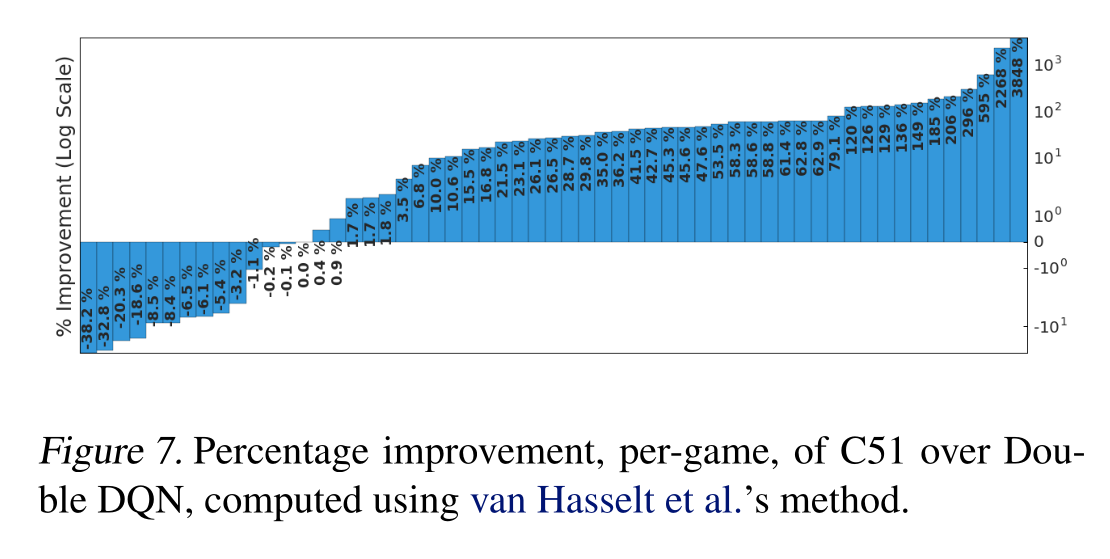

Categorical DQN
Categorical DQN
Categorical DQN

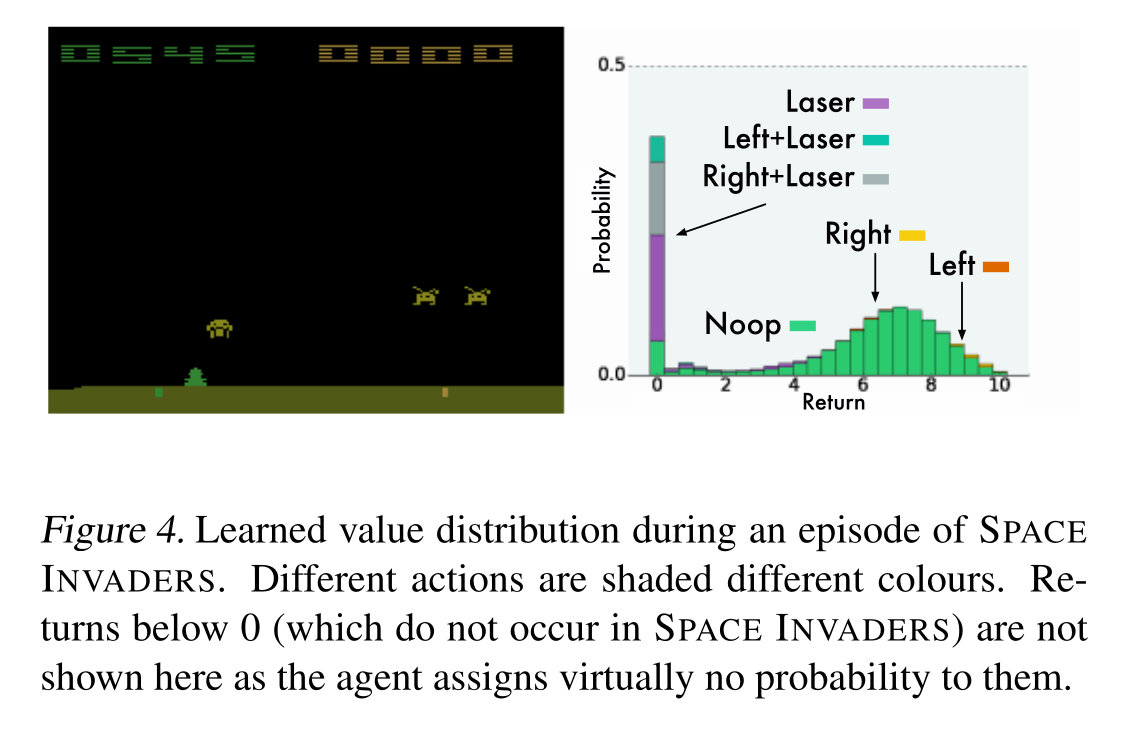

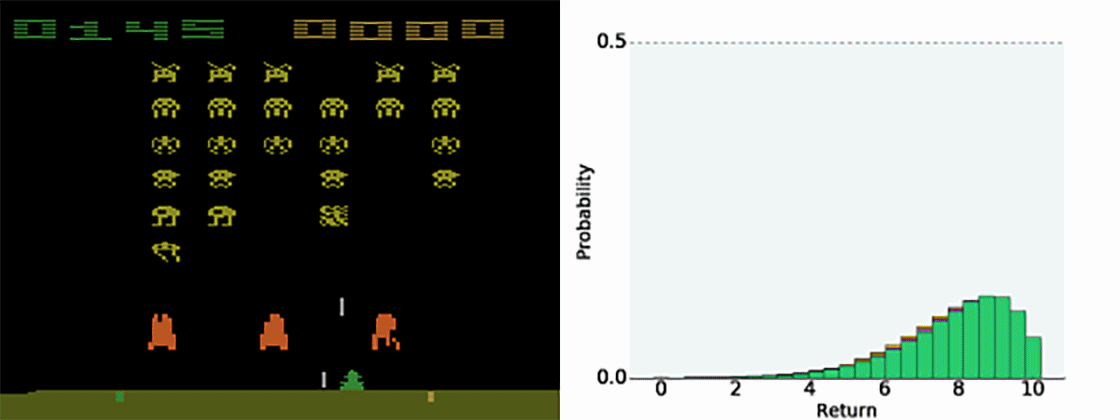

Having the full distribution of returns allow to deal with uncertainty.
For certain actions in critical states, one could get a high return (killing an enemy) or no return (death).
The distribution reflects that the agent is not certain of the goodness of the action. Expectations would not provide this information.
Source: https://deepmind.com/blog/article/going-beyond-average-reinforcement-learning
Categorical DQN
Categorical DQN
2 - Noisy DQN
Noisy DQN
DQN and its variants rely on \epsilon-greedy action selection over the Q-values to explore.

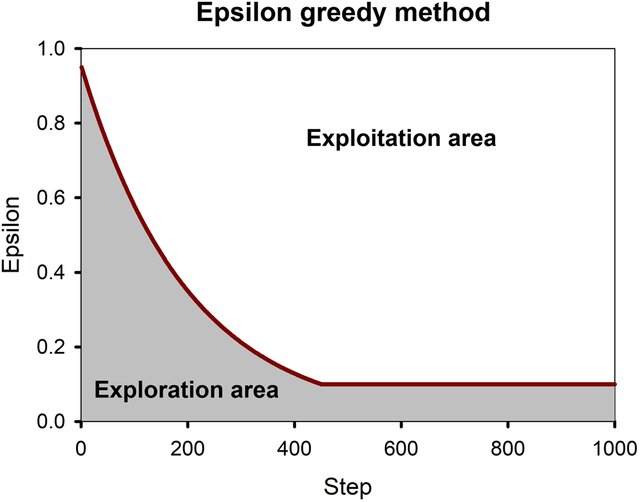

The exploration parameter \epsilon is annealed during training to reach a final minimal value.
It is preferred to softmax action selection, where \tau scales with the unknown Q-values.
The problem is that it is a global exploration mechanism: well-learned states do not need as much exploration as poorly explored ones.
Noisy DQN
\epsilon-greedy and softmax add exploratory noise to the output of DQN:
- The Q-values predict a greedy action, but another action is taken.
What about adding noise to the parameters (weights and biases) of the DQN, what would change the greedy action everytime?
Controlling the level of noise inside the neural network indirectly controls the exploration level.

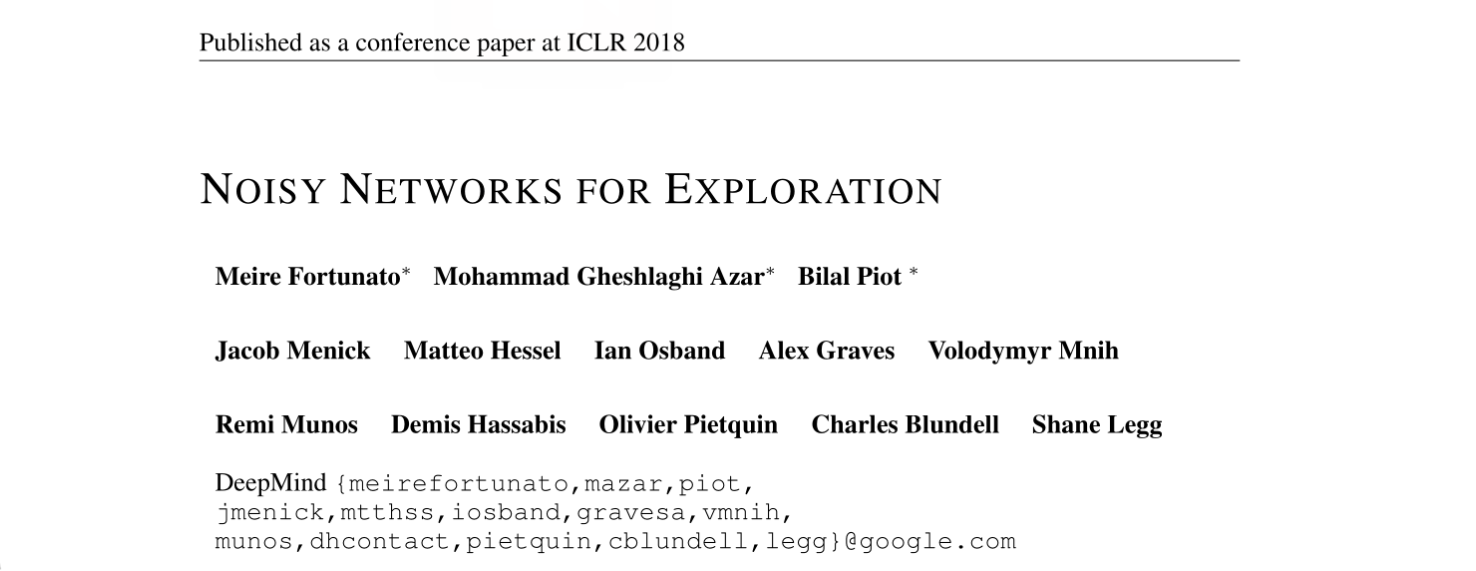

- Note: a very similar idea was proposed by OpenAI at the same ICLR conference:
Plappert, M., Houthooft, R., Dhariwal, P., Sidor, S., Chen, R. Y., Chen, X., et al. (2018). Parameter Space Noise for Exploration. arXiv:1706.01905.
Noisy DQN

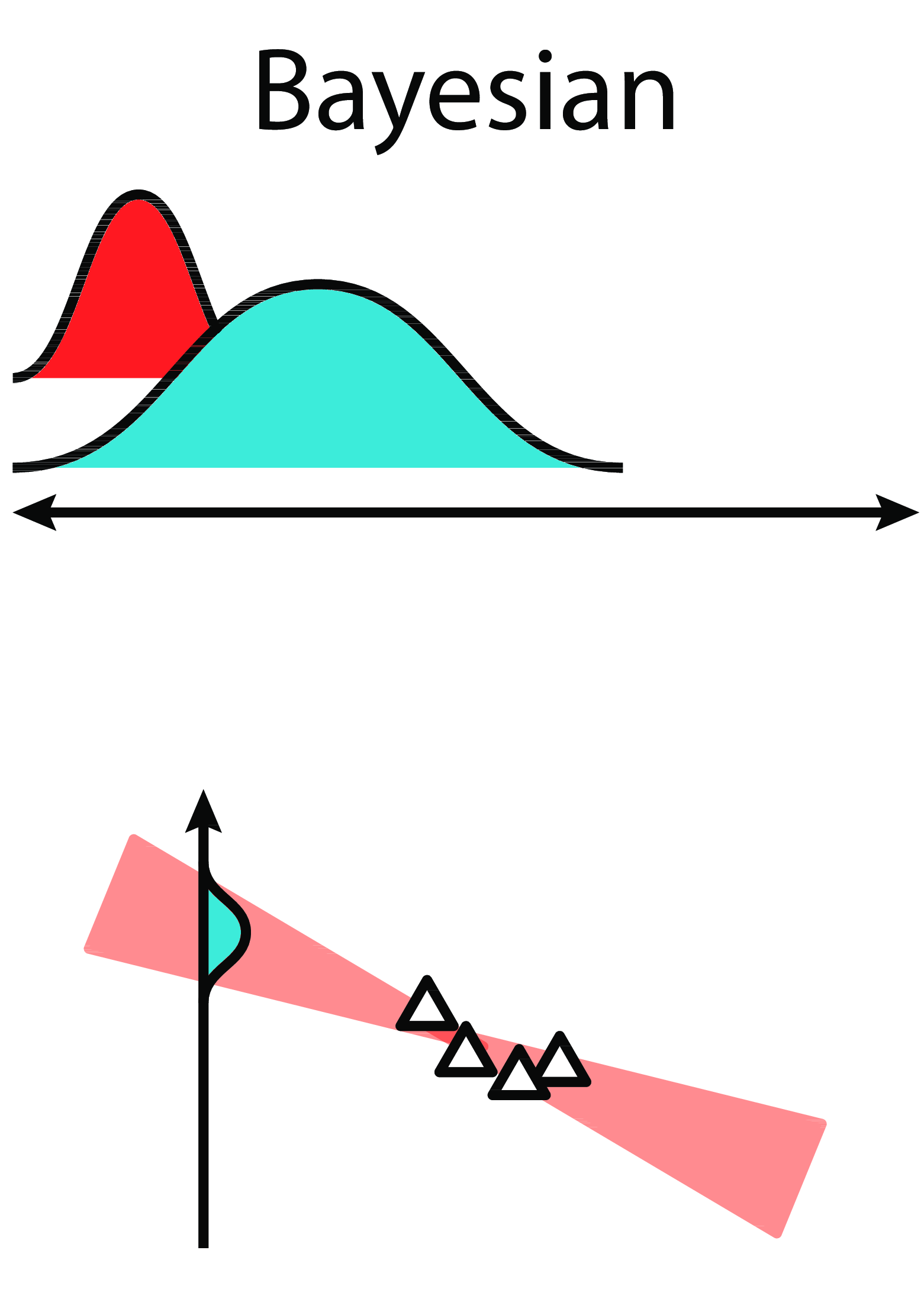

Parameter noise builds on the idea of Bayesian deep learning.
Instead of learning a single value of the parameters:
y = \theta_1 \, x + \theta_0
we learn the distribution of the parameters, for example by assuming they come from a normal distribution:
\theta \sim \mathcal{N}(\mu_\theta, \sigma_\theta^2)
- For each new input, we sample a value for the parameter:
\theta = \mu_\theta + \sigma_\theta \, \epsilon
with \epsilon \sim \mathcal{N}(0, 1) a random variable.
- The prediction y will vary for the same input depending on the variances:
y = (\mu_{\theta_1} + \sigma_{\theta_1} \, \epsilon_1) \, x + \mu_{\theta_0} + \sigma_{\theta_0} \, \epsilon_0
- The mean and variance of each parameter can be learned through backpropagation!
Noisy DQN
- Probabilistic weights:
\theta \sim \mathcal{N}(\mu_\theta, \sigma_\theta^2)
As the random variables \epsilon_i \sim \mathcal{N}(0, 1) are not correlated with anything, the variances \sigma_\theta^2 should decay to 0.
The variances \sigma_\theta^2 represent the uncertainty about the prediction y.
Applied to DQN, this means that a state which has not been visited very often will have a high uncertainty:
The predicted Q-values will change a lot between two evaluations.
The greedy action might change: exploration.
Conversely, a well-explored state will have a low uncertainty:
- The greedy action stays the same: exploitation.
Noisy DQN
Noisy DQN uses greedy action selection over noisy Q-values.
The level of exploration is learned by the network on a per-state basis. No need for scheduling!

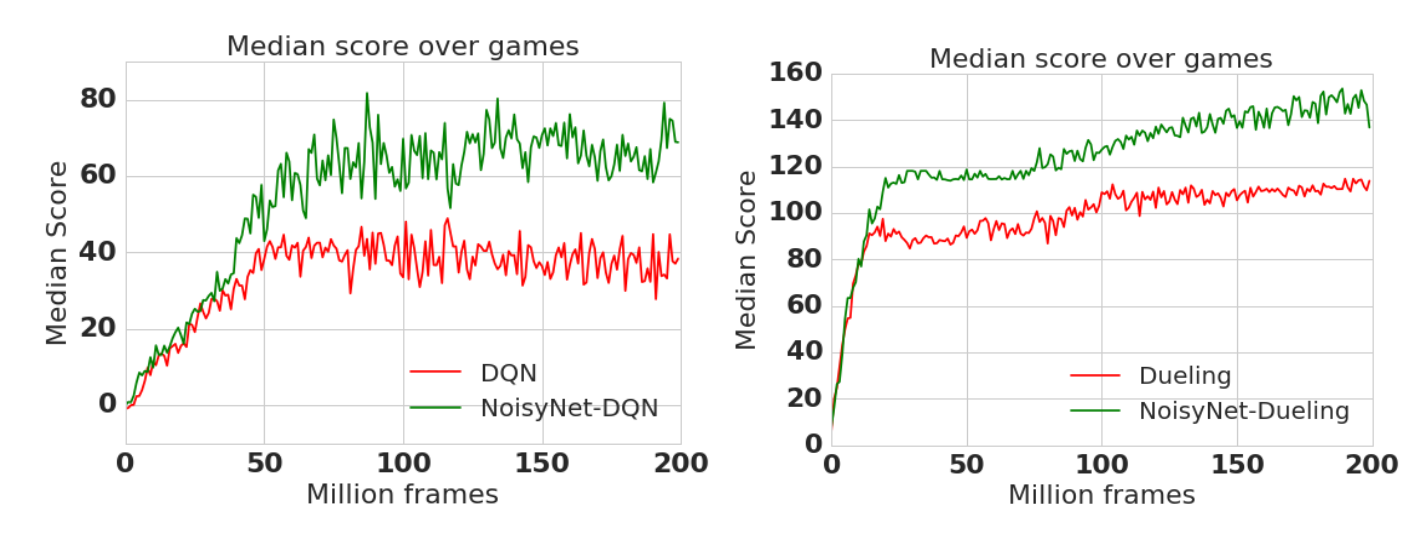

Parameter noise improves the performance of \epsilon-greedy-based methods, including DQN, dueling DQN, A3C, DDPG (see later), etc.
3 - Rainbow network
Rainbow network
Answer: all of them.
The rainbow network combines :
double dueling DQN with PER.
categorical learning of return distributions.
parameter noise for exploration.
n-step return (n=3) for the bias/variance trade-off:
R_t = \sum_{k=0}^{n-1} \gamma^k r_{t+k+1} + \gamma^n \, \max_a Q(s_{t+n}, a)
It outperforms any of the single improvements.
Rainbow network

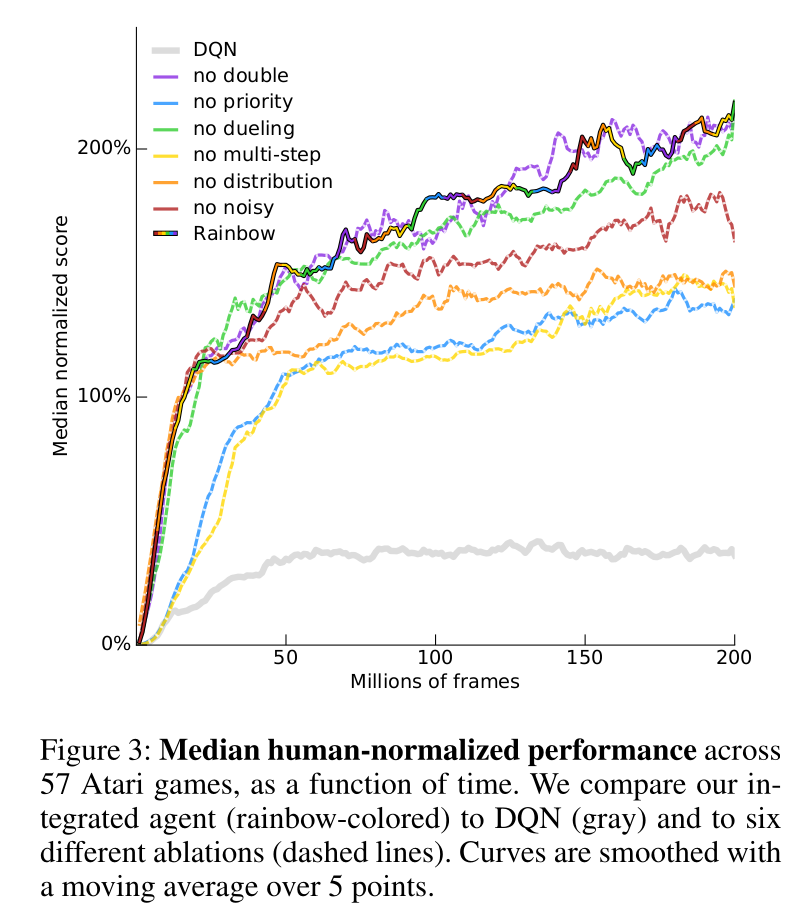

Most of these mechanisms are necessary to achieve optimal performance (ablation studies).
n-step returns, PER and distributional learning are the most critical.
Interestingly, double Q-learning does not have a huge effect on the Rainbow network:
- The other mechanisms (especially distributional learning) already ensure that Q-values are not over-estimated.
You can find good implementations of Rainbow DQN on all major frameworks, for example on
rllib:
https://docs.ray.io/en/latest/rllib-algorithms.html#deep-q-networks-dqn-rainbow-parametric-dqn
4 - Gorila - General Reinforcement Learning Architecture
Gorila

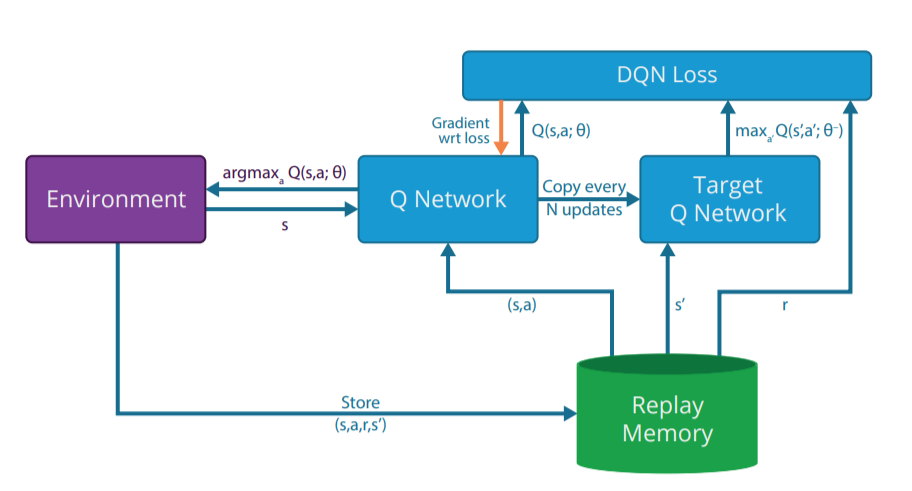

The DQN value network Q_\theta(s, a) has two jobs:
actor: it interacts with the environment to sample (s, a, r, s') transitions.
learner: it learns from minibatches out of the replay memory.
The weights of the value network lie on the same CPU/GPU, so the two jobs have to be done sequentially: computational bottleneck.
DQN cannot benefit from parallel computing: multi-core CPU, clusters of CPU/GPU, etc.
Gorila

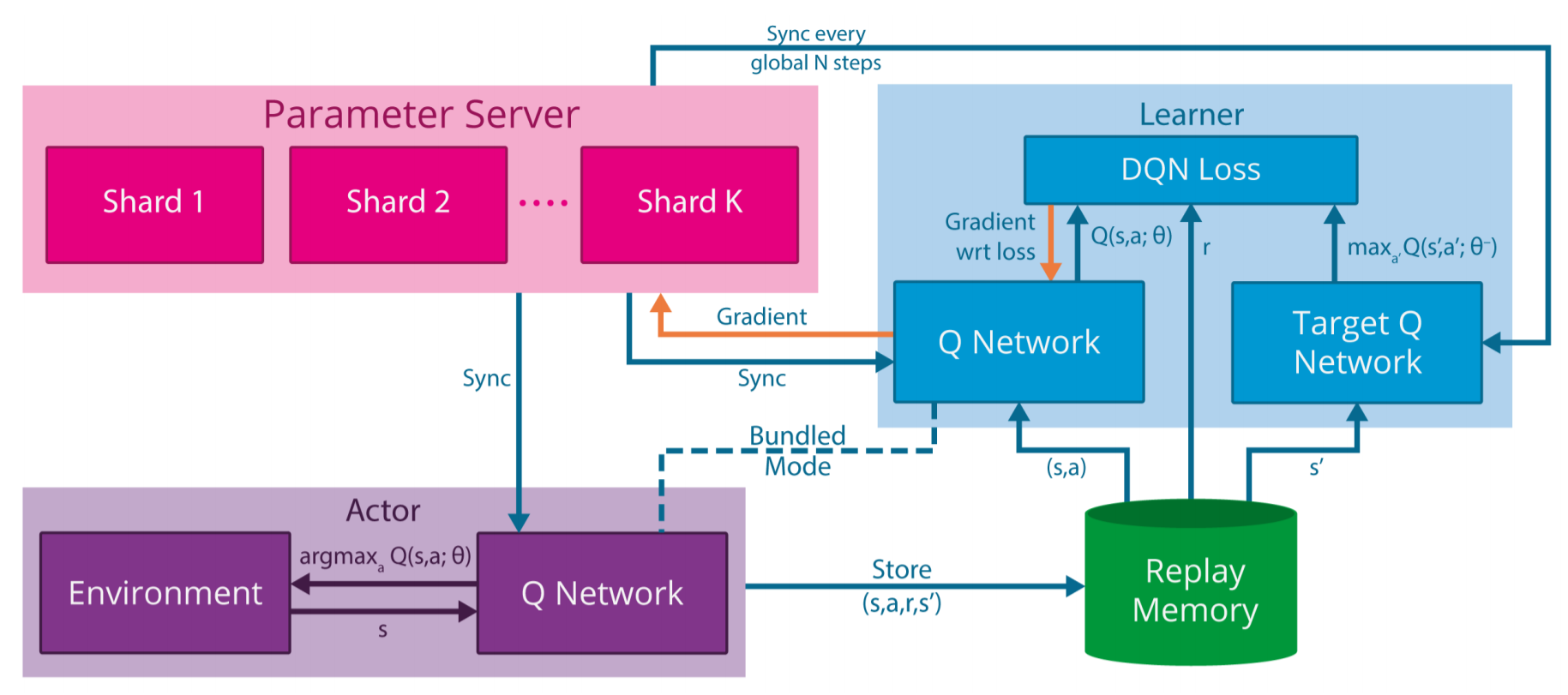

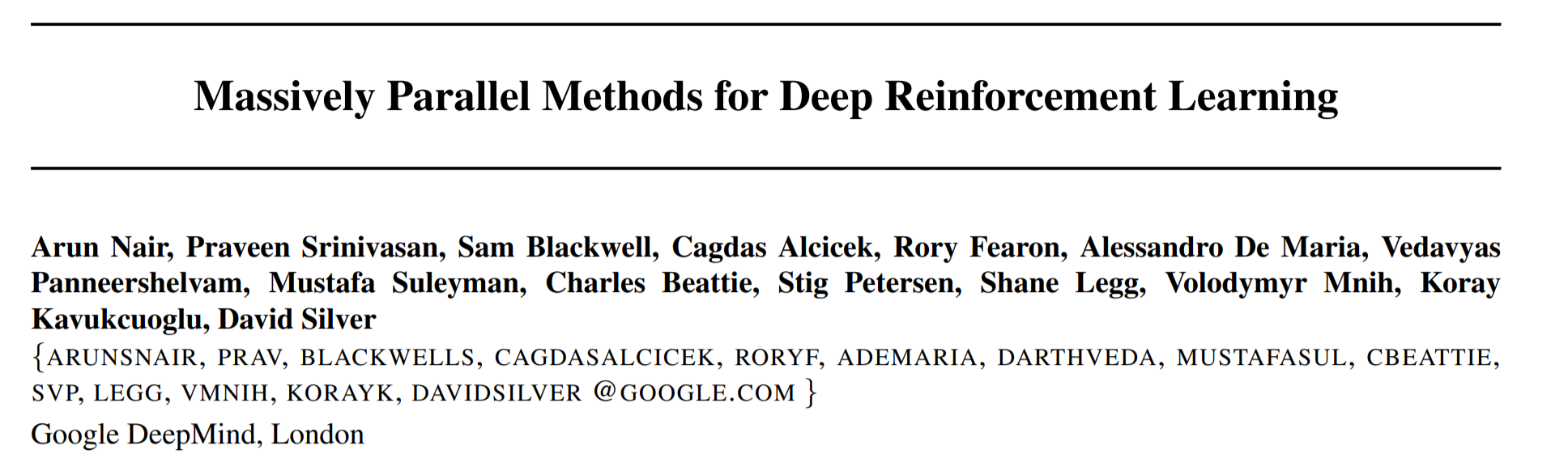

The Gorila framework splits DQN into multiple actors and multiple learners.
Each actor (or worker) interacts with its copy of the environment and stores transitions in a distributed replay buffer.
Each learner samples minibatches from the replay buffer and computes gradients w.r.t the DQN loss.
The parameter server (master network) applies the gradients on the parameters and frequently synchronizes the actors and learners.
Gorila

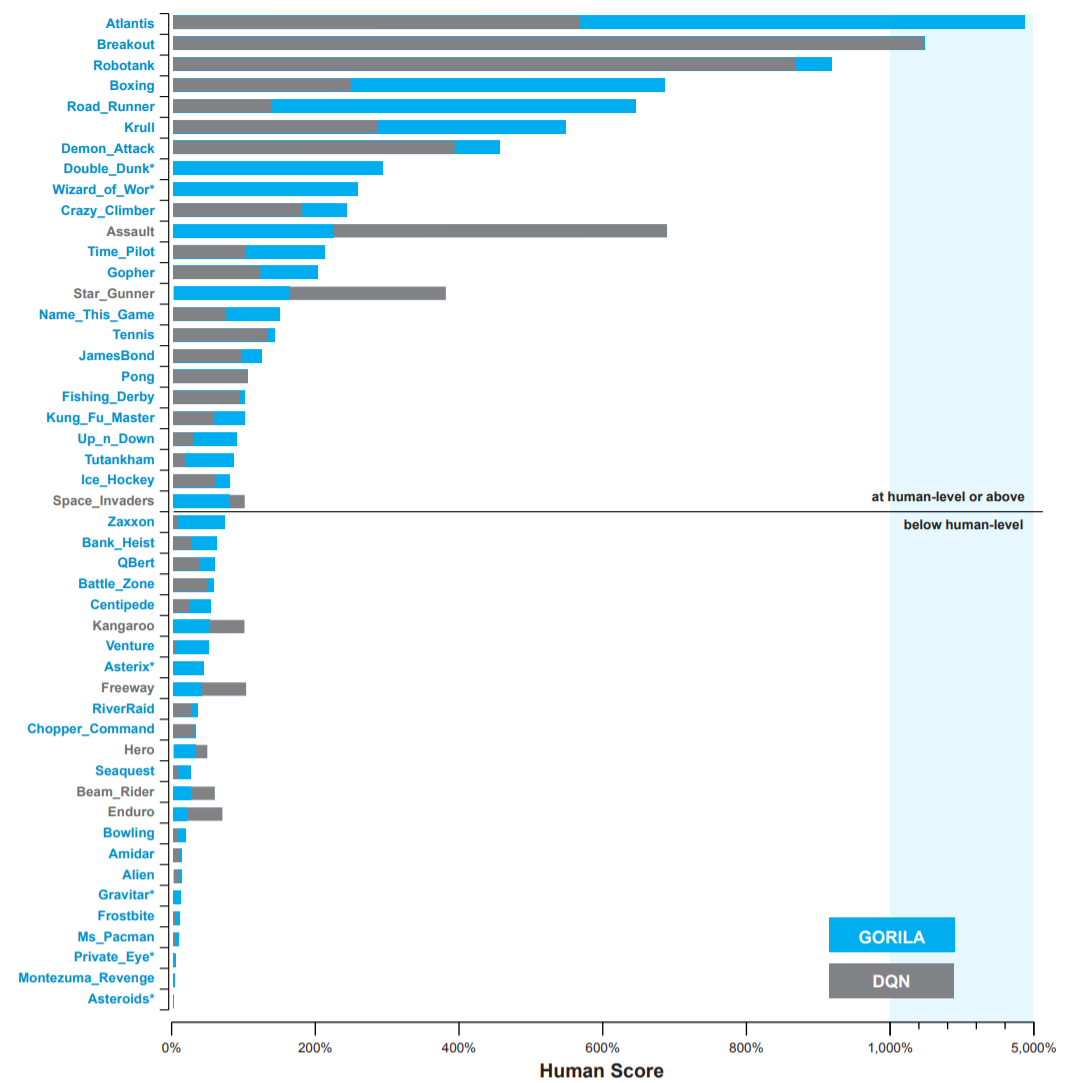

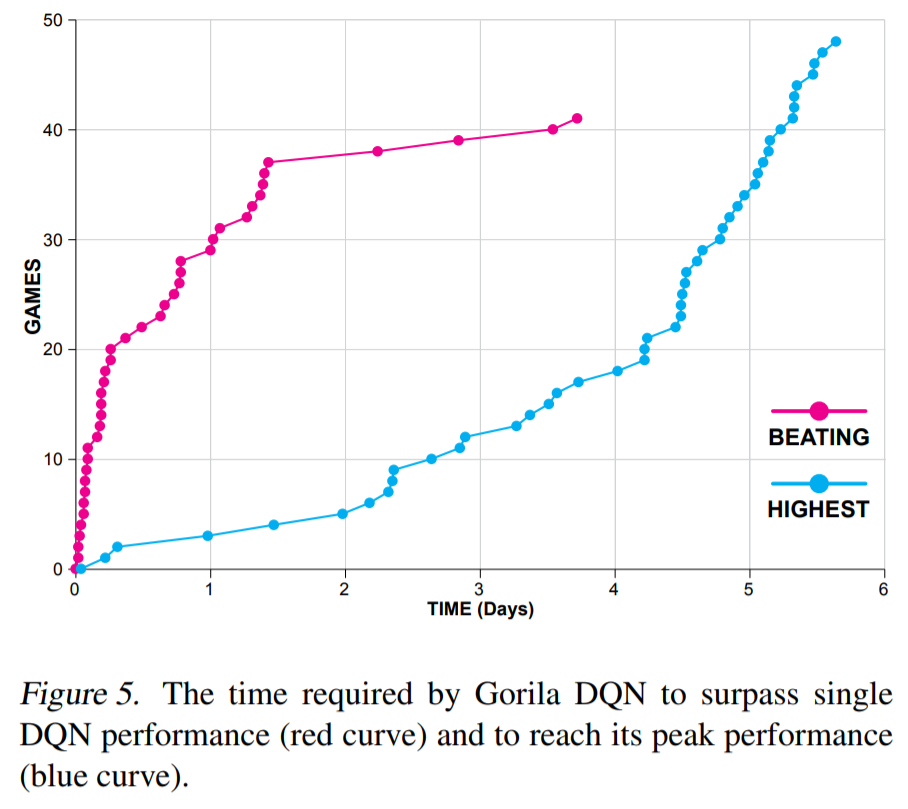

- Gorila allows to train DQN on parallel hardware (e.g. clusters of GPU) as long as the environment can be copied (simulation).
- The final performance is not incredibly better than single-GPU DQN, but obtained much faster in wall-clock time (2 days instead of 12-14 days on a single GPU).
Ape-X

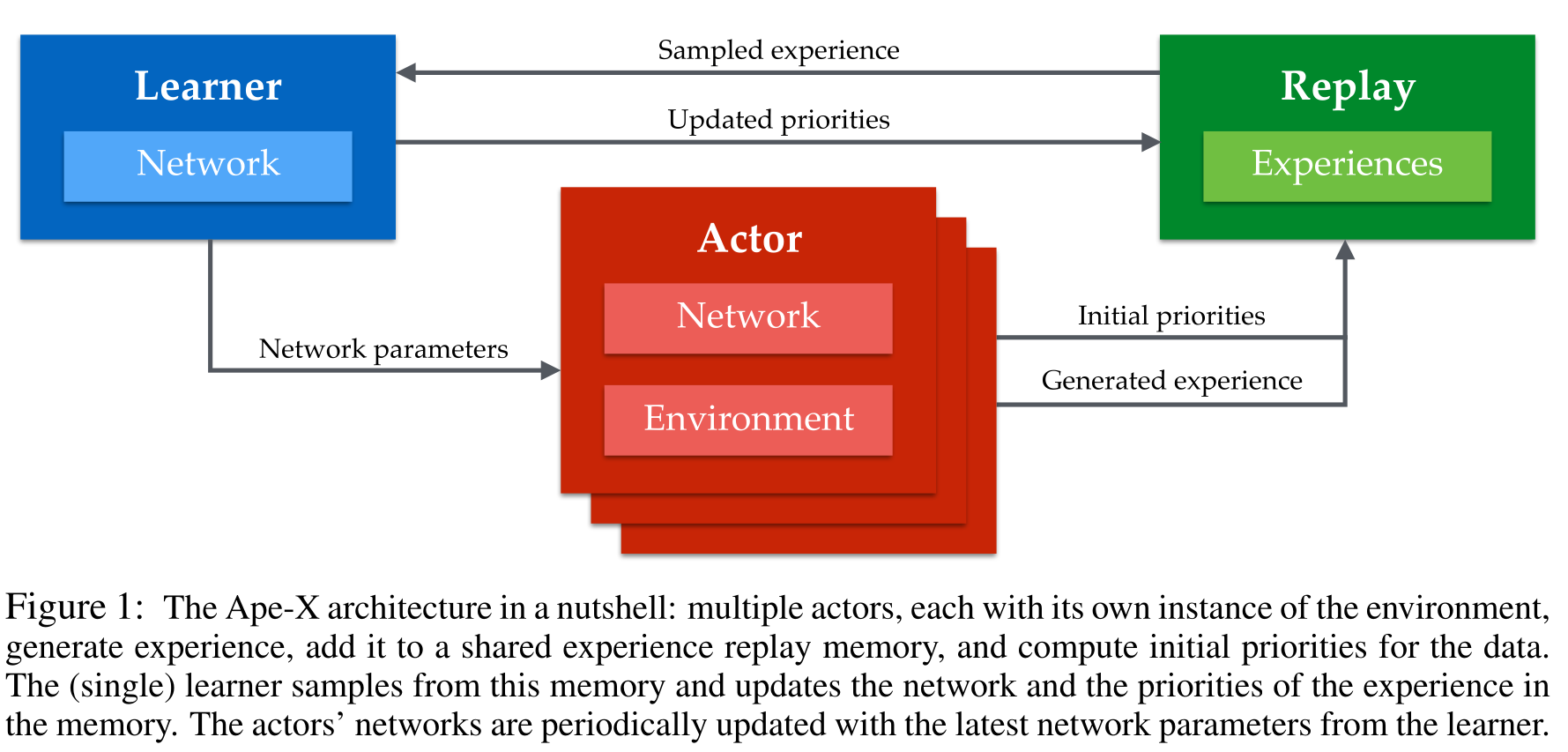

With more experience, Deepmind realized that a single learner is better. Distributed SGD (computing gradients with different learners) is not very efficient.
What matters is collecting transitions very quickly (multiple workers) but using prioritized experience replay to learn from the most interesting ones.
Ape-X

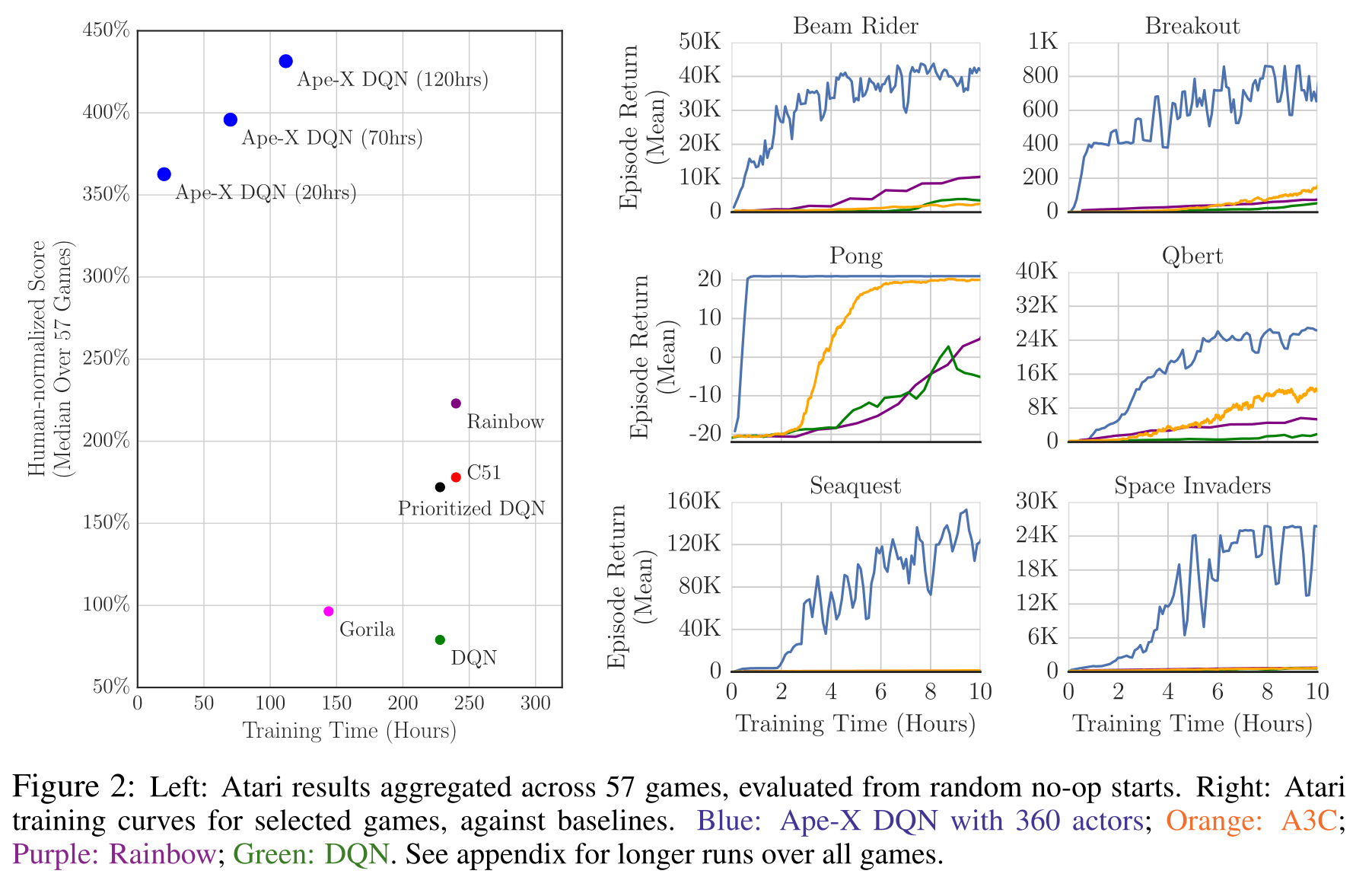

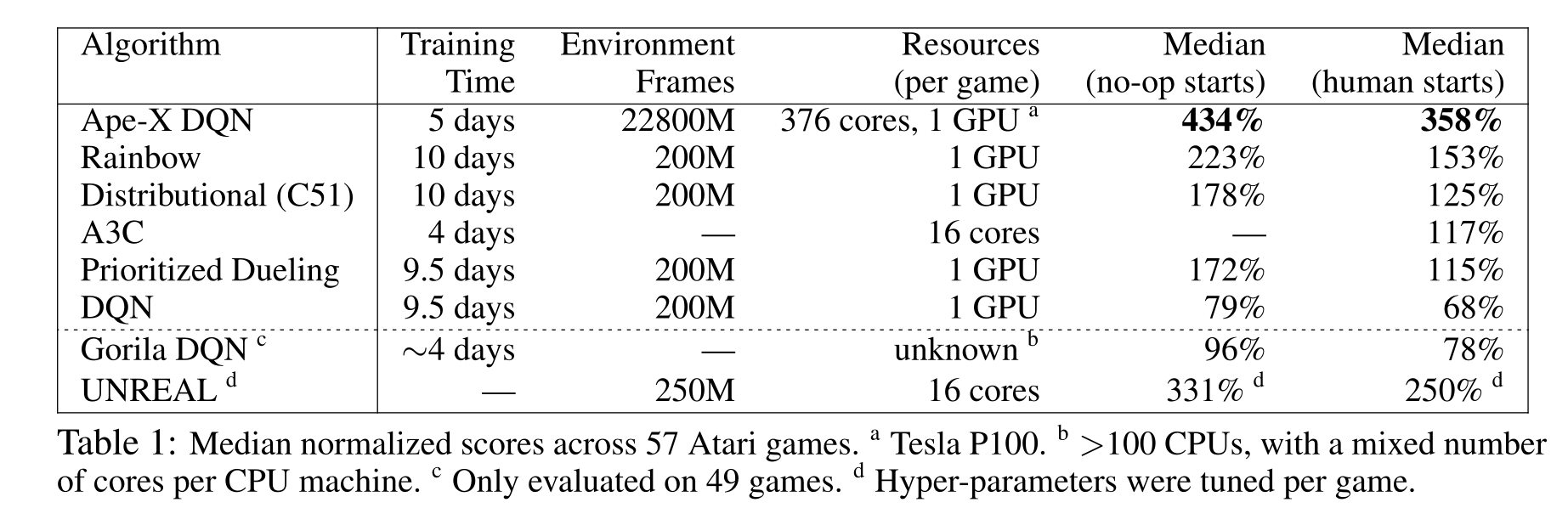

- Using 360 workers (1 per CPU core), Ape-X reaches super-human performance for a fraction of the wall-clock training time.
Ape-X
The multiple parallel workers can collect much more frames, leading to the better performance.
The learner uses n-step returns and the double dueling DQN network architecture, so it is not much different from Rainbow DQN internally.
5 - DRQN: Deep Recurrent Q-network
DRQN: Deep Recurrent Q-network

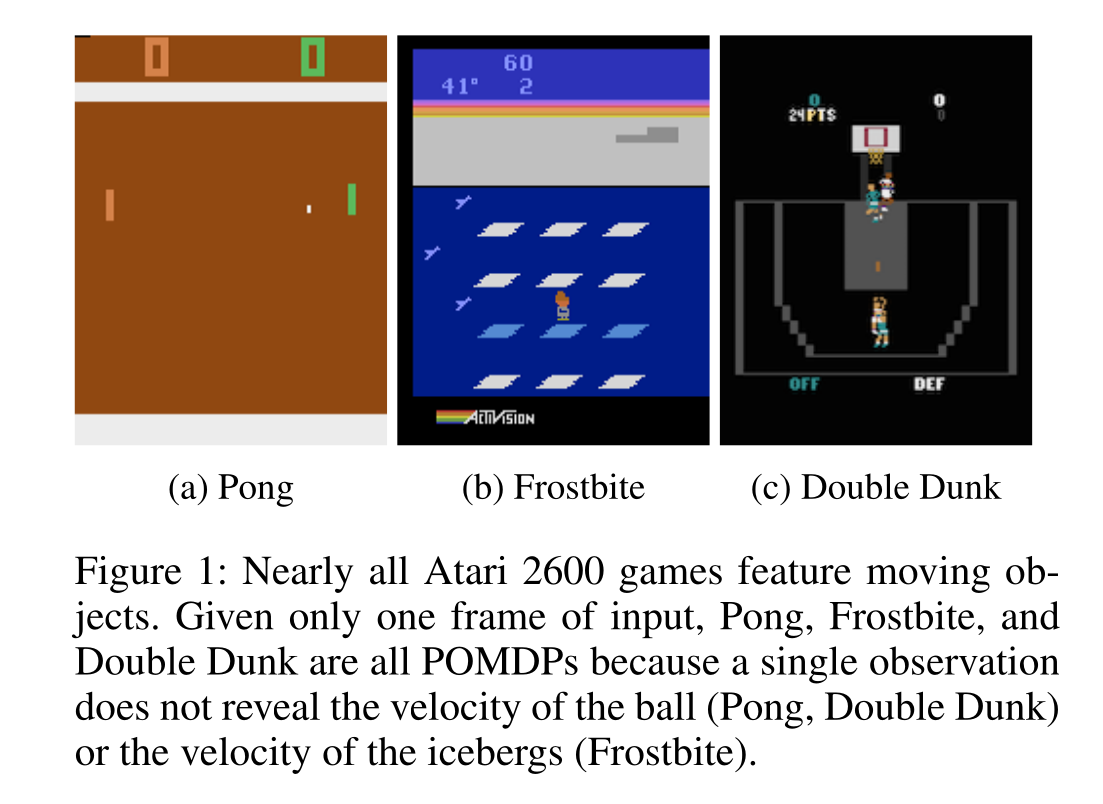

Atari games are POMDP: each frame is a partial observation, not a Markov state.
One cannot infer the velocity of the ball from a single frame.
DRQN: Deep Recurrent Q-network

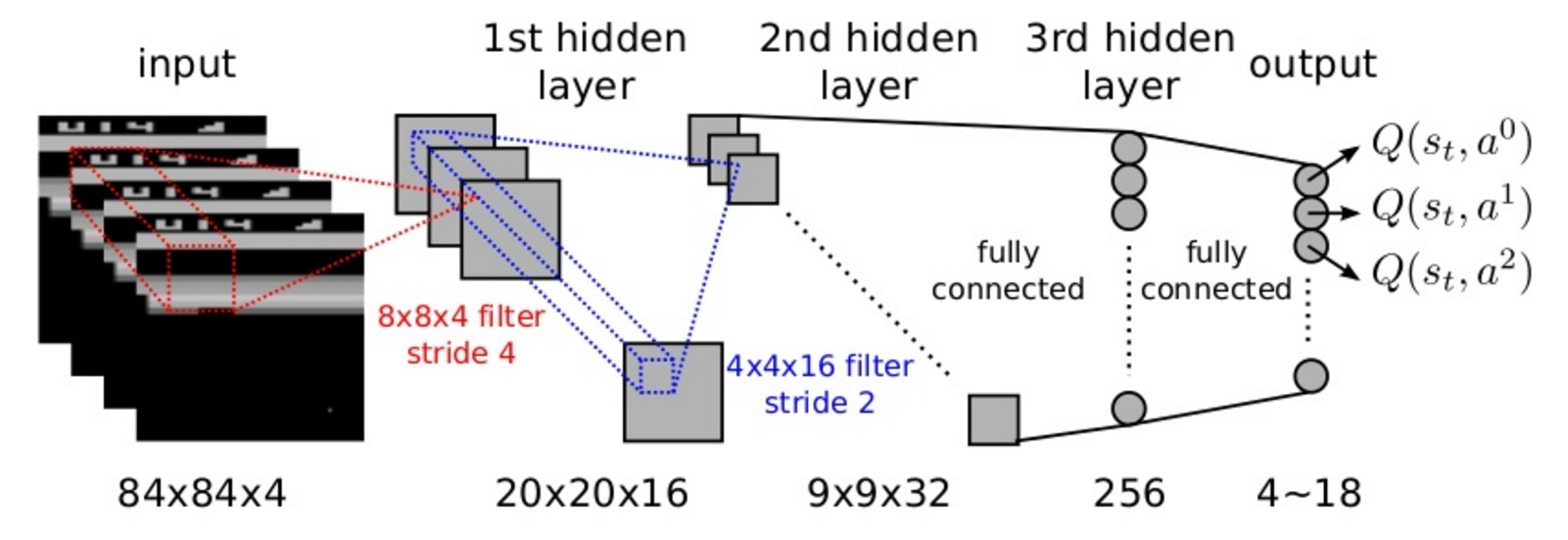

The trick used by DQN and its variants is to stack the last four frames and provide them as inputs to the CNN.
The last 4 frames have (almost) the Markov property.
DRQN: Deep Recurrent Q-network
- The alternative is to use a recurrent neural network (e.g. LSTM) to encode the history of single frames.
\mathbf{h}_t = f(W_x \times \mathbf{x}_t + W_h \times \mathbf{h}_{t-1} + \mathbf{b})
- The output at time t depends on the whole history of inputs (\mathbf{x}_0, \mathbf{x}_1, \ldots, \mathbf{x}_t).
- Using the output of a LSTM as a state, we make sure that we have the Markov property, RL will work:
P(\mathbf{h}_{t+1} | \mathbf{h}_t) = P(\mathbf{h}_{t+1} | \mathbf{h}_t, \mathbf{h}_{t-1}, \ldots, \mathbf{h}_0)
DRQN: Deep Recurrent Q-network
Source: https://blog.acolyer.org/2016/11/23/playing-fps-games-with-deep-reinforcement-learning/

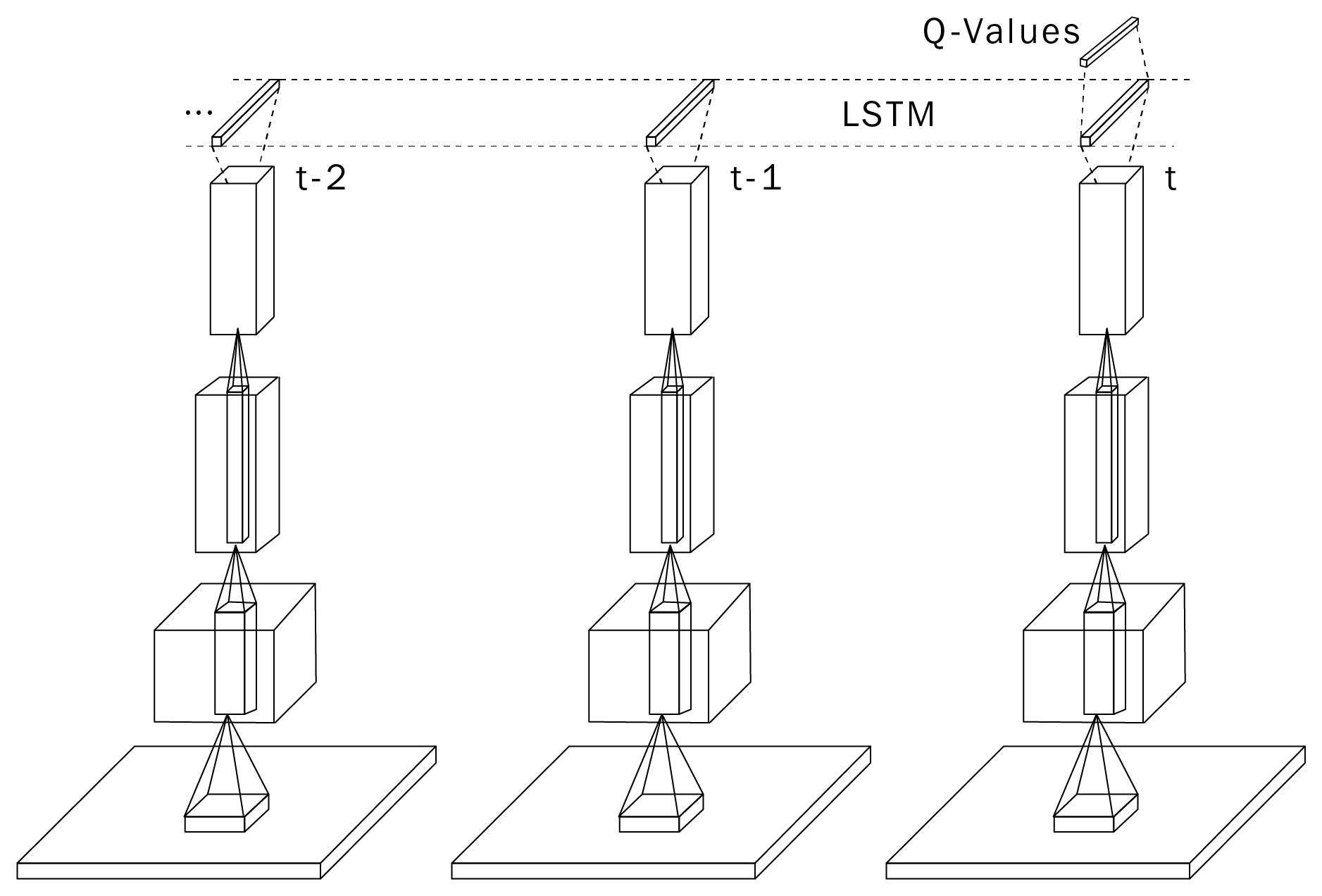

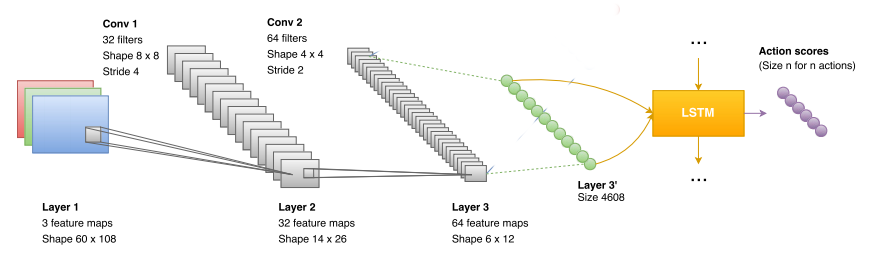

For the neural network, it is just a matter of adding a LSTM layer before the output layer.
The convolutional layers are feature extractors for the LSTM layer.
The loss function does not change: backpropagation (through time) all along.
\mathcal{L}(\theta) = \mathbb{E}_\mathcal{D} [(r + \gamma \, Q_{\theta'}(s´, \text{argmax}_{a'} Q_{\theta}(s', a')) - Q_\theta(s, a))^2]
DRQN: Deep Recurrent Q-network
DRQN: Deep Recurrent Q-network
The only problem is that RNNs are trained using truncated backpropagation through time (BPTT).
One needs to provide a partial history of T = 10 inputs to the network in order to learn one output:
(\mathbf{x}_{t-T}, \mathbf{x}_{t-T+1}, \ldots, \mathbf{x}_t)
- The experience replay memory should not contain single transitions (s_t, a_t, r_{t+1}, s_{t+1}), but a partial history of transitions.
(s_{t-T}, a_{t-T}, r_{t-T+1}, s_{t-T+1}, \ldots, s_t, a_t, r_{t+1}, s_{t+1})
DRQN: Deep Recurrent Q-network

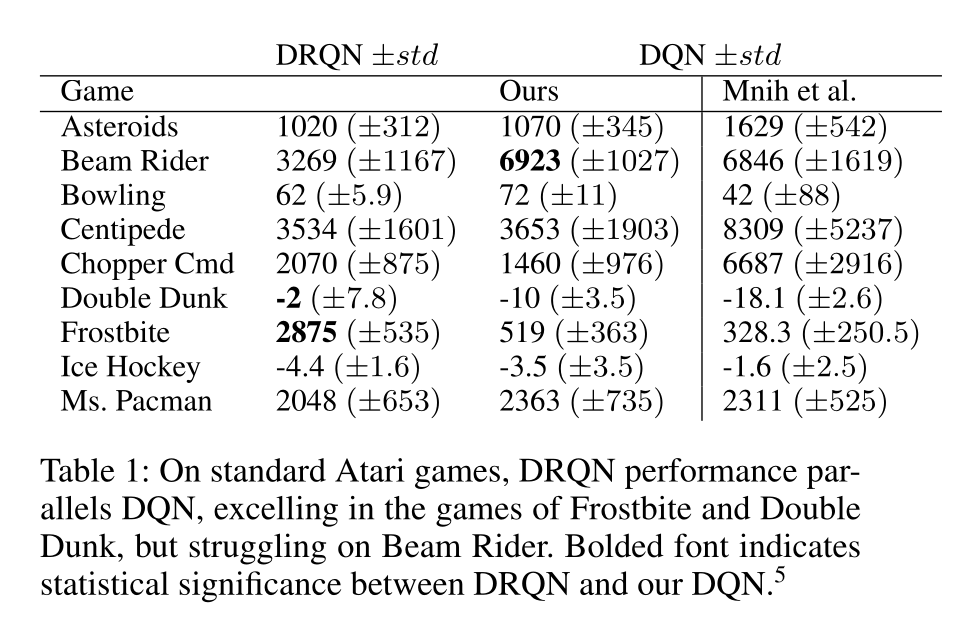

- Using a LSTM layer helps on certain games, where temporal dependencies are longer that 4 frames, but impairs on others.
DRQN: Deep Recurrent Q-network

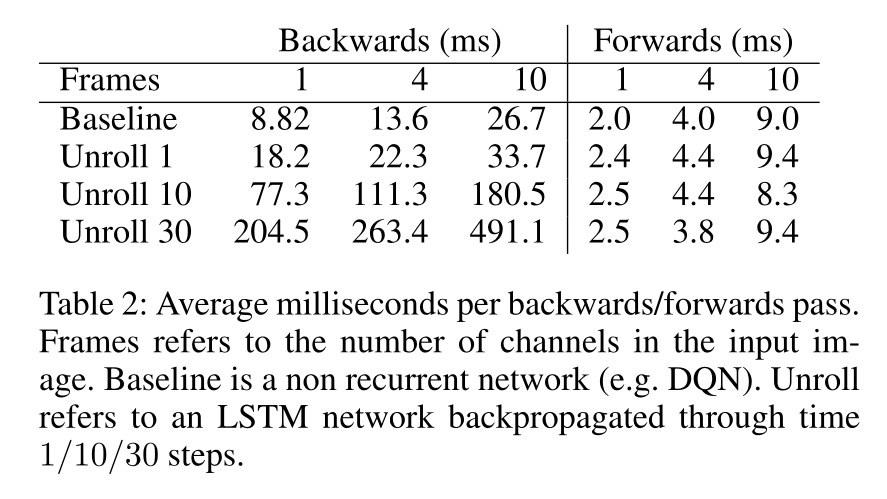

Beware: LSTMs are extremely slow to train (but not to use).
Stacking frames is still a reasonable option.
6 - R2D2: Recurrent Replay Distributed DQN
R2D2: Recurrent Replay Distributed DQN
R2D2 builds on Ape-X and DRQN:
- double dueling DQN with n-step returns (n=5) and prioritized experience replay.
- 256 actors, 1 learner.
- 1 LSTM layer after the convolutional stack.

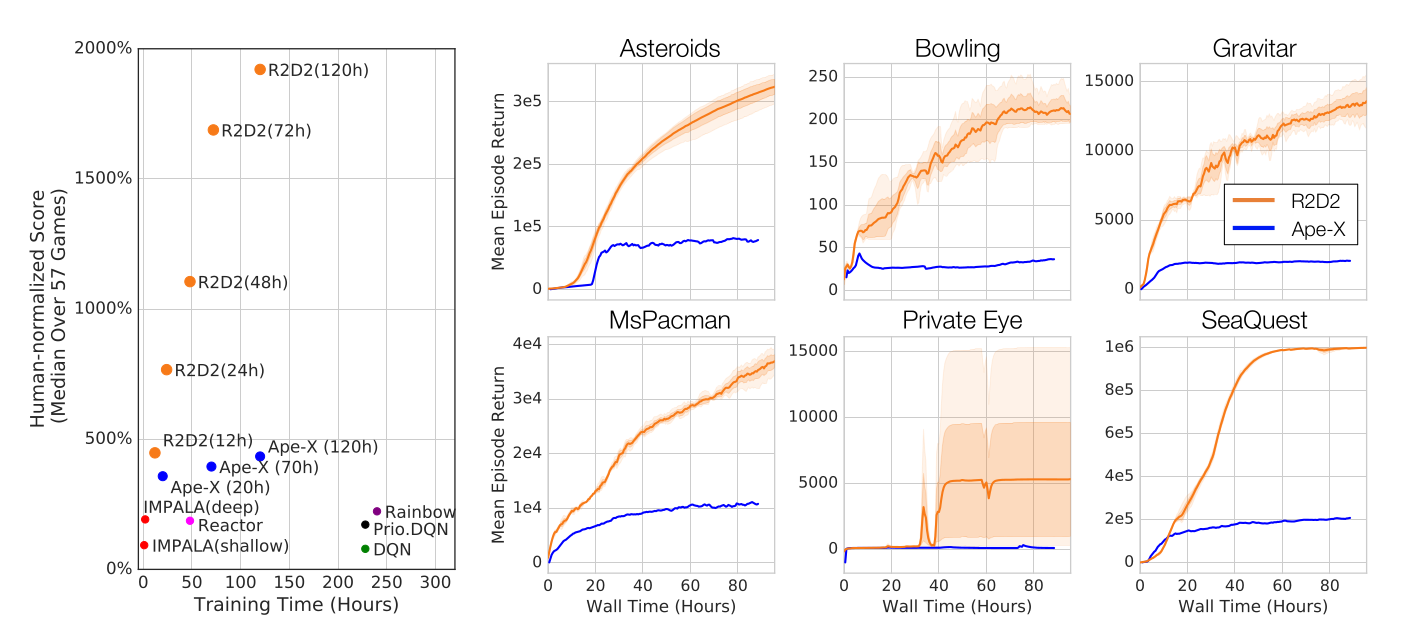

Additionally solving practical problems with LSTMs (initial state), it became the state of the art on Atari-57 until November 2019…
